ESP hardened expandable baton – 16″, 18″, 21″, 23″ and 26″

Our hardened expandable batons (ExB) are intended for professional use in extreme conditions. They serve for fast self-defence in different conflict situations.

The difference to the non-hardened version is the expandable tubes, which are made from a more superior material, which is hardened by heat treatment. Thanks to it, the batons are highly resistant to a flexion if the baton is exposed to a hard stroke. Surface finish is black nickel-zinc (with good resistance to abrasion), or chrome (silver surface).

They meet the requirements of the German standard for expandable batons. This product is suitable for the police, security agencies, and guards, against an assailant armed with a knife, for walking in the country alone or with a dog.

The expandable baton is opened by sharp flick and stays firmly fixed in this position. We have produced hardened batons in 5 lengths with 4 types of rubber handles.

What is the telescopic baton – more information >



EXPANDABLE BATONS HARDENED AND NON-HARDENEDEXPANDABLE BATONS HARDENED AND NON-HARDENED

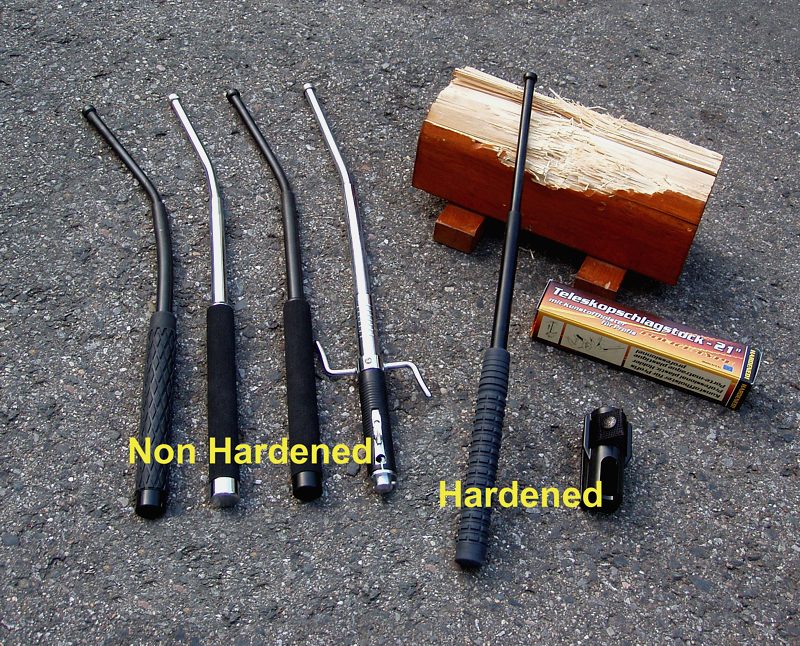

Demonstration of difference between hardened and non-hardened baton (after one blow)Demonstration of difference between hardened and non-hardened baton (after one blow)



Types of handles

Specially designed rubber handle enables a secure hold. The rubber material is certified for long-term contact with the skin without health risks. Two types of handles are available:



Anti-slip handle with a rough surface "H"

Its design significantly decreases any possibility of the baton being yanked from the hand and gives the user a comfortable certitude.

Anti-slip handle – hardened expandable baton

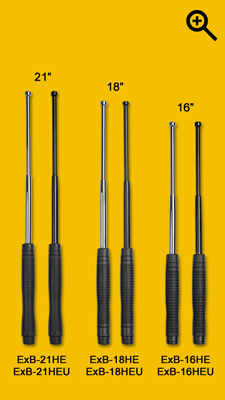

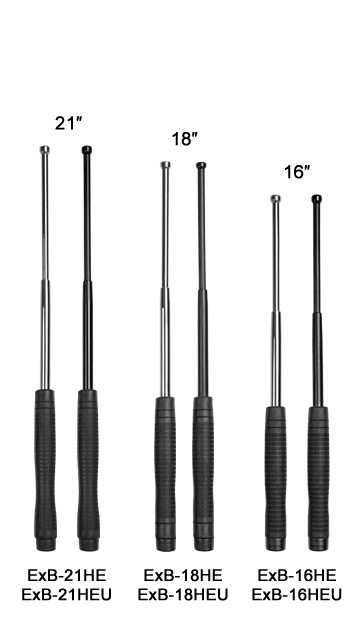

Ergonomic handle "HE"

This handle has an ergonomic shape with pleasant smooth surface.

Ergonomic handle – hardened expandable baton


Smooth leather-imitation grip "HL"

Smooth leather-imitation grip – hardened expandable baton

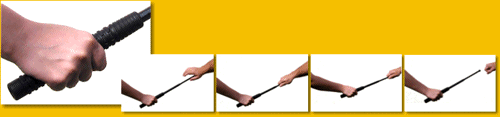

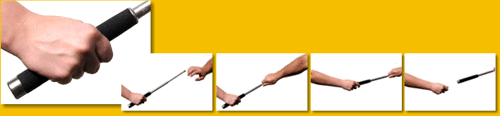

One tried to pull the baton out of hand...

Common baton
Common baton


ESP baton

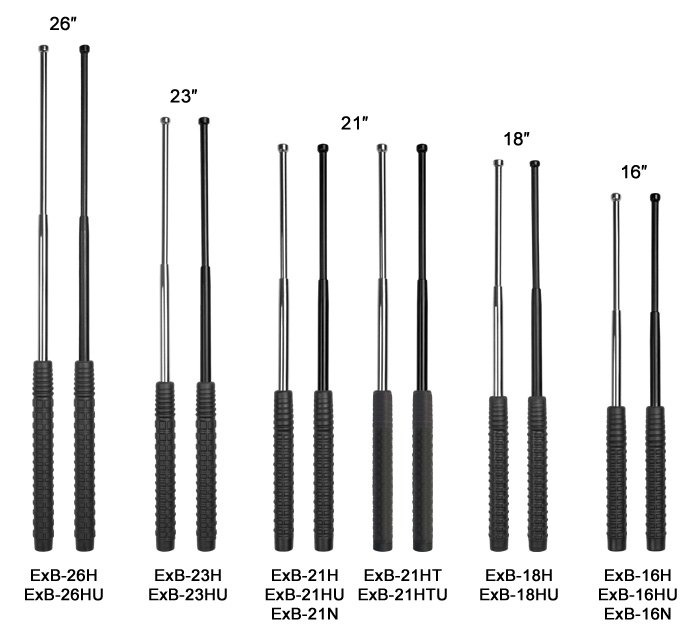

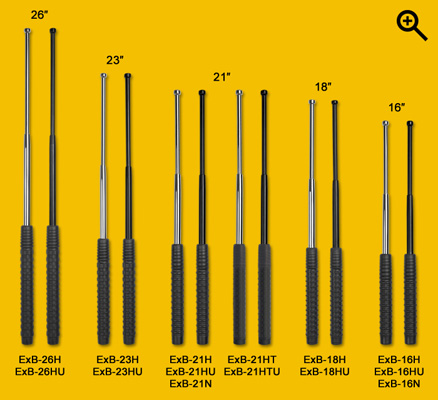

Review of producing types

Designation of the batonSurface finishLength of the batonWeight
(without holder)
anti-slip handleergonomic handleclosedexpanded *
ExB-16H ExB-16HE black / chrome 6,7″  /  170 mm 16″  /  405 mm 340 g
ExB-18H ExB-18HE black / chrome 7,1″  /  180 mm
18″  /  455 mm 370 g
ExB-21H ExB-21HT ExB-21HE ExB-21HL black / chrome 8,3″  /  210 mm 21″  /  530 mm 440 g
ExB-23H ExB-23HE black / chrome 9″  /  230 mm 23″  /  585 mm 500 g
ExB-26H ExB-26HE black / chrome 10,2″  /  260 mm 26″  /  660 mm 540 g

* length tolerance: -0,6″ (-15,2 mm)  /  +0,4″ (10,1 mm)






Swiveling holder supplied with the expandable baton

All hardened batons are supplied with a professional swiveling plastic holder with Quick Change System, for which European patent was granted. It can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions. This holder is included in the price of the baton.

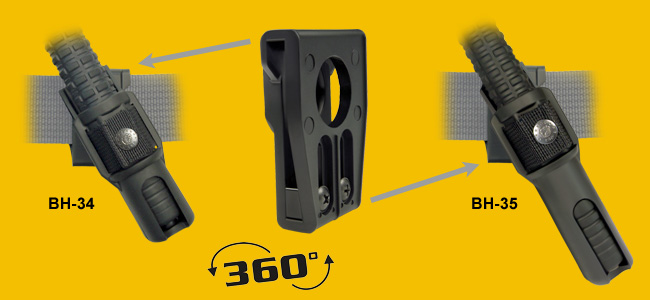

Sviwelling plastic holder BH-34 and BH-35


This holder enables:

  • very quick drawing of the baton just with one hand, since there is almost no friction thanks to automatic opening of the holder after unfastening of nylon strap,
  • with unfastened nylon strap enables carrying of expanded baton.



The holder is equipped with UBC-05 belt clip (part of the Quick Change System) which enables the user to quickly change between different plastic and nylon ESP holders with rotation mechanism. The clip itself remains fastened to the belt – you only need to click on the holder of choice.



  • batons of the lengths 16, 18″ and 21″ .... BH-54
  • ExB-21HL baton .... BH-54-L
  • batons of the lengths 23″ and 26″ .... BH-55


Technical data for hardened expandable batons

A three-part steel friction lock baton with a special rubber grip, with a high-quality holder as part of the delivery.

Outside diameter of the grip: 27,5 mm (29,5 mm for ExB-23H, ExB-26H).



Material

Cold drawn seamless tubes pipes, class CSN 12 060 (Czech standard) = CK55 (DIN 17200) = C55E (EN 10083-1+A1).



Part of batons Pipes
diameter
Width of
the wall
Hardened for
Rockwell hardness
Holder 21 mm 1,75 mm 47 ± 2 HRC
Centre part of batons 16 mm 1,5 mm 49 ± 2 HRC
End part of batons 11 mm 2 mm 51 ± 2 HRC



Surface finish

Surface finish is black nickel-zinc (with good resistance to abrasion), or white chrome.



Technical Directive - Short and long batons - Situation: April 2006 >

Testing Protocol >
